Dometic Brisk/Duo-Therm AC - 6 Pin Molex Connector

Dometic Brisk and Duo-Therm 6-pin Molex pinout (view from the AC into the control box). All pins are 120V for the blower motor and compressor.

DometicBriskDuo-ThermDuoThermMolex6 pinconnectorpinoutcompressorblowerair conditionerACRV

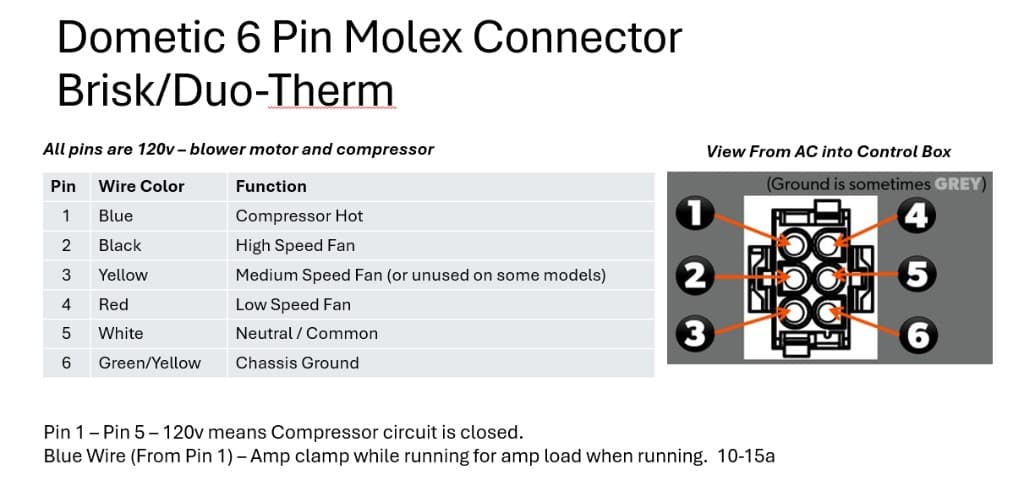

Dometic Brisk/Duo-Therm 6-pin Molex connector pinout, viewed from the AC into the control box
Click the diagram to open full size.

Pinout

  • Pin 1 — Blue — Compressor Hot
  • Pin 2 — Black — High Speed Fan
  • Pin 3 — Yellow — Medium Speed Fan (or unused on some models)
  • Pin 4 — Red — Low Speed Fan
  • Pin 5 — White — Neutral / Common
  • Pin 6 — Green/Yellow — Chassis Ground (sometimes grey)
  • Pin 1 to Pin 5 at 120V means the compressor circuit is closed.
  • Amp-clamp the blue wire (Pin 1) while running for compressor load. Typical 10–15 A.
