Dometic Brisk/Duo-Therm Blower Motor Test

Ohms test for the Dometic Brisk and Duo-Therm blower motor at the 6-pin Molex. Continuity from white (Pin 5) to yellow and red; no continuity from ground (Pin 6) to yellow or red. Fan low is white to red; fan high is white to black.

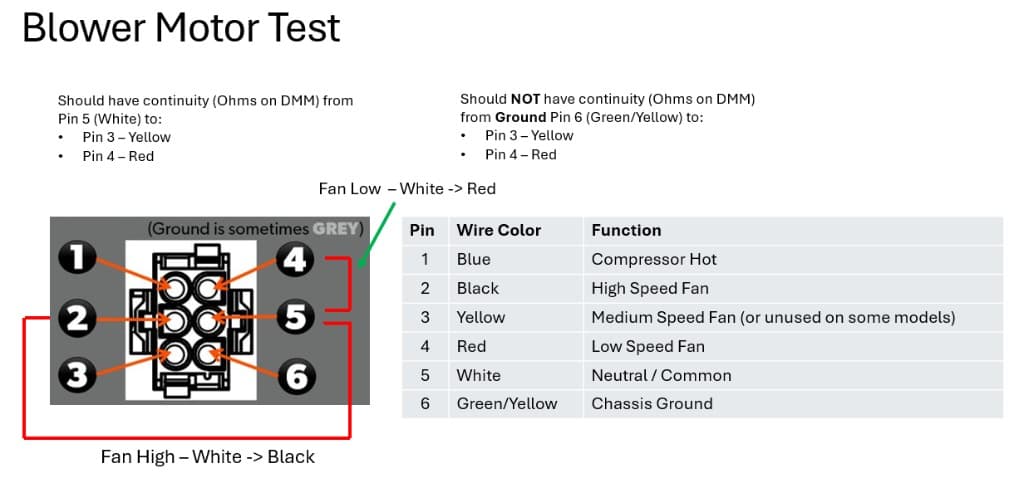

Ohms at the 6-pin Molex

• Should have continuity from Pin 5 (white) to Pin 3 (yellow) and Pin 4 (red).
• Should NOT have continuity from ground Pin 6 (green/yellow, sometimes grey) to Pin 3 (yellow) or Pin 4 (red).
• Fan low — white to red.
• Fan high — white to black.
